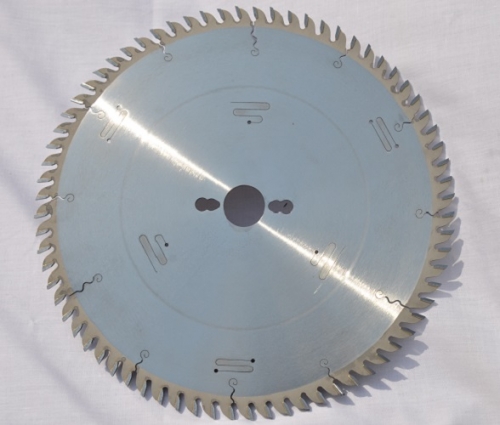

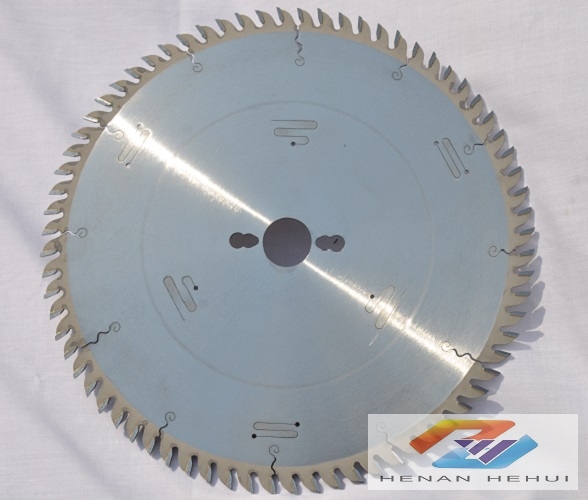

TCT circular saw blade for wood cutting-table panel sizing saw blade

Item No.: TCTCB001
Tooth Type: TF/WZ
Material: —75Cr Steel+Chunbao Hard Alloy
               —Germany 75CR1 Steel+ KCR05+ Luxembourg

Application: Used for cutting of laminated chipboards, MDF, multi-board with thickness of no more tha
INQUIRY
Description
Tooth Type: TF/WZ
Material: —75Cr Steel+Chunbao Hard Alloy
              —Germany 75CR1 Steel+ KCR05+ Luxembourg

Application: Used for cutting of laminated chipboards, MDF, multi-board with thickness of no more than 35mm. Scoring blade is need in animated chipboards cutting situation.

Features:
  • high welding precision
  • smooth cutting with little edge chipping
  • long cutting life
  • low cutting noise

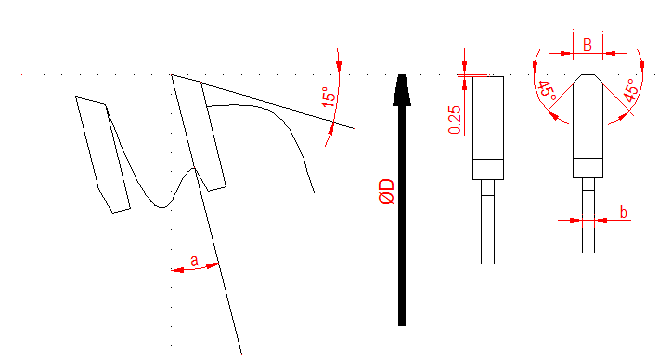

Size Available:
Special sizes could be offered upon requirement.
Diameter(mm)
        D
Inner Hole(mm)
          d
Body Thickness(mm)
              b
Segment Width(mm)
          d
Segment Quantities(pcs)
          Z
200 30 2.2 3.2 64
250 30 2.2 3.2 80
300 30 2.2 3.2 72/96
350 30 2.5 3.5 84/96/108
400 30 2.5 3.5 96/120
